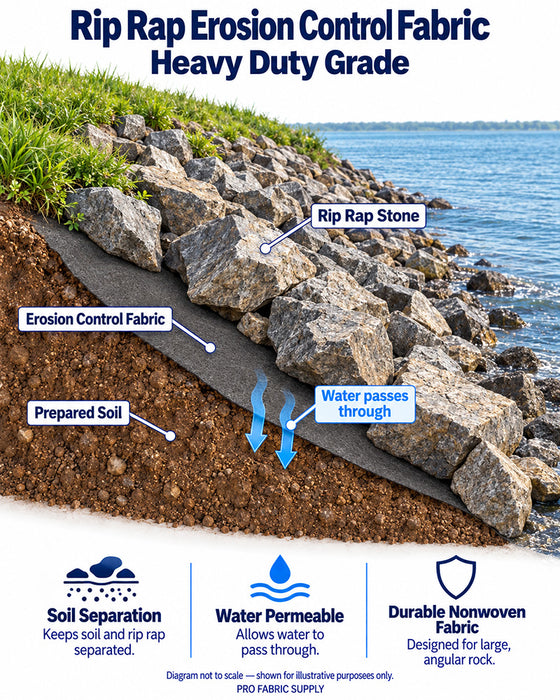

Drainage & Erosion Control Fabric - Ultra Heavy-Duty - 8oz - 12.5' x 360' Roll
Request Online >
All of our geotextile fabrics are professional-grade and are designed for use in both residential & commercial applications. Our fabrics are designed for years of continuous use in the designated application.
Shipping estimates shown on the map pertain to this specific product only. Fabric orders typically ship same day if the order is placed before 12:00 noon CST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
|Fabric Property||Test Method||Units||Minimum Average |
|Grab Tensile||ASTM D 4632||lbs.||205(.911 kN)|
|Grab Elongation||ASTM D 4632||lbs.||50|
|CBR Puncture||ASTM D-6241||lbs.||525(2.33 kN)|
|Trap-Tear Strength||ASTM D 4533||lbs.||80(.356 kN)|
|Mullen Burst Strength||ASTM D 3786||psi||400|
|Puncture||ASTM D 4833||lbs.||130|
|Permittivity||ASTM D 4491||sec-¹||1.4|
|Water Flow||ASTM D 4491||gpm/ft²||90(3657 l/min/sm)|
|UV Resistance||ASTM D 4355||%||80|
|AOS||ASTM D 4751||US Sieve||#80(.180 mm)|
To the best of our knowledge, the information contained herein is accurate. However, Pro Fabric Supply cannot anticipate all conditions under which the above product information and the products which we distribute or the products of other distributors or manufacturers in combination with the products which we offer, may be used. We accept no responsibility for results obtained by the application of this information or the safety or suitability of the products we distribute either alone or in combination with other products. Final determination of the suitability of any information or material for the used contemplated, or its manner of use, and whether the suggested use infringes any patents is the sole responsibility of the user. Please note: Pro Fabric Supply is a distributor of geotextile fabric, not the manufacturer. We source material from a number of different United States based geotextile manufacturers.
The below is a comparison of the general effectiveness as a drainage and filtration fabric between different fabrics that we offer based on fabric material composition. Please note that the below levels are an approximation.
