Road Fabric - Heavy Duty Grade C - 15 x 300

$3,846.22

FREE SHIPPING

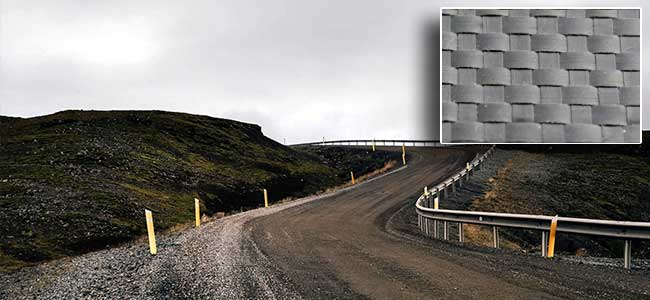

Heavy-Duty Grade C Road Fabric is great for road paving applications where strength and water drainage are crucial.

Heavy-Duty Grade C fabric is engineered to be strong in tension at low strain rates making it perfect for paving or high traffic applications. This woven road fabric has been tested by Geosynthetic Accreditation Institute lab for ASTM 4595 & D4491 strength and permittivity tests.

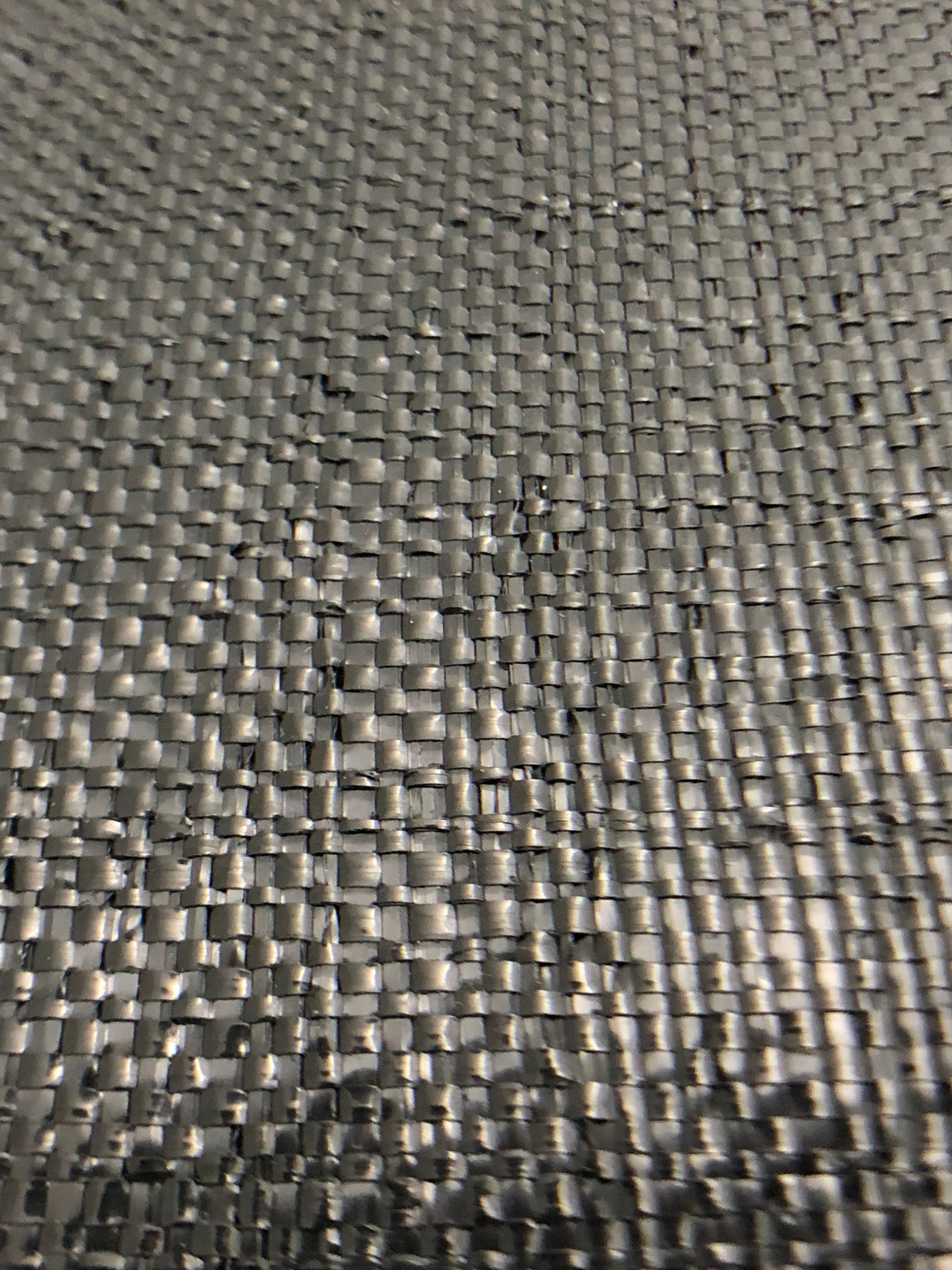

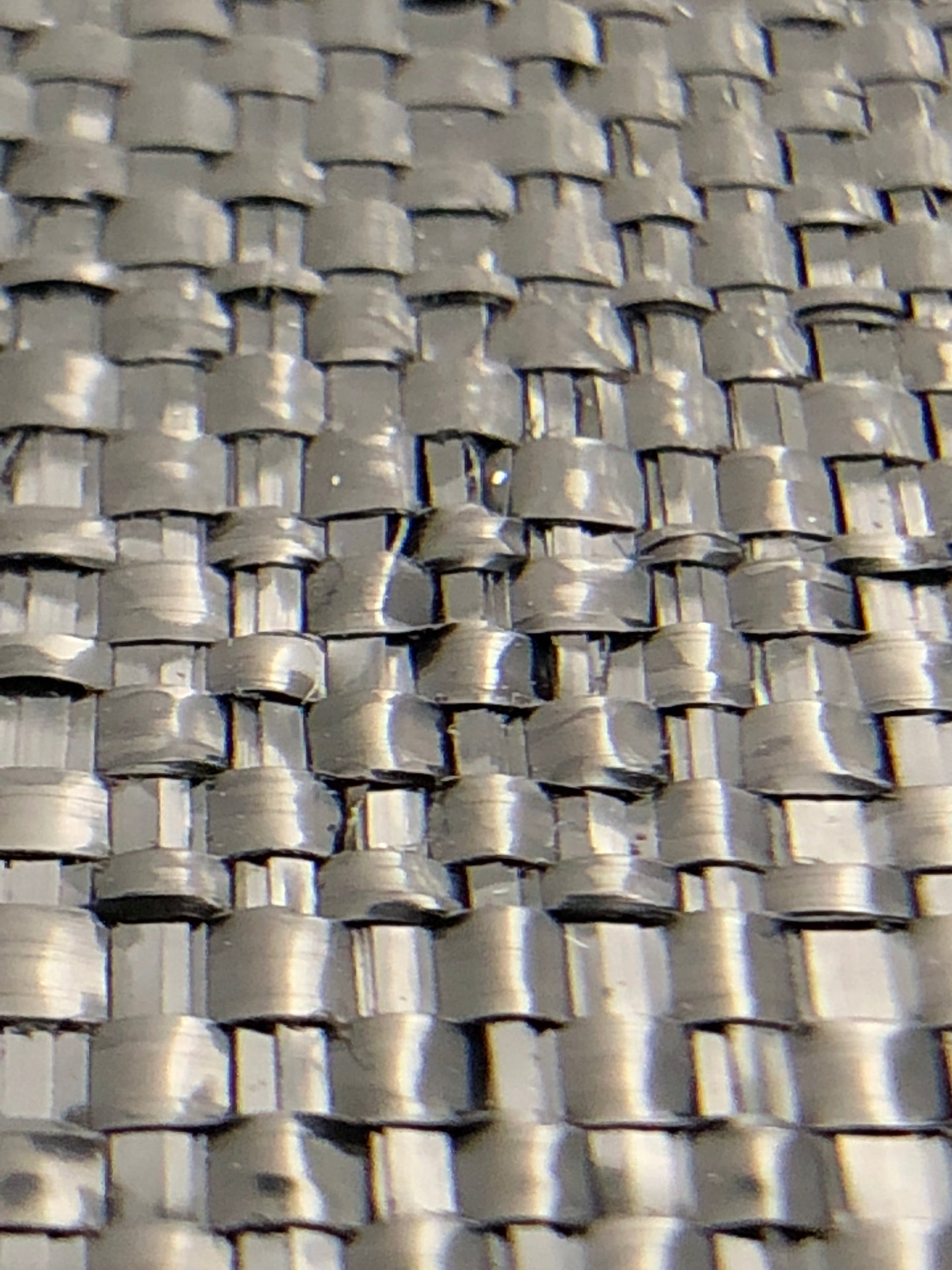

Woven Fabric Class: Heavy Duty Grade C

Flow Rate: 85 gpm/ft²

Grab Tensile Strength @ 2% Strain: 840 lbs/ft

Grab Tensile Strength @ 5% Strain: 1980 lbs/ft

This fabric is ideal for situations that require great drainage and high strength.

**See below for a full list of woven fabrics and roll sizing>

15' x 300' Roll Size

Product Specifics

  • Model: FAB-RDH15300
  • Series: Road Fabric  - Intermediate Grade
  • Size: 15' x 300'
  • Square Feet / Roll: 4,500
  • Free Shipping
  • Need a Written Quote?
    Request Online >
  • Volume Pricing Available on Large Rolls
         (widths 9 feet and above)
  • Questions? Call (800) 520-7731

woven stabilization
Heavy duty fabric

  • Contractor Grade
  • UV Resistant
  • Non-Biodegradable
  • Will Not Rot or Mildew
  • Resistant to Rodent and Insect Damage

All of our geotextile fabrics are professional-grade and are designed for use in both residential & commercial applications. Our fabrics are designed for years of continuous use in the designated application.

FABRIC installation

  • Level and smooth out the subgrade. Remove sharp rocks and other objects that could puncture the fabric during the installation.

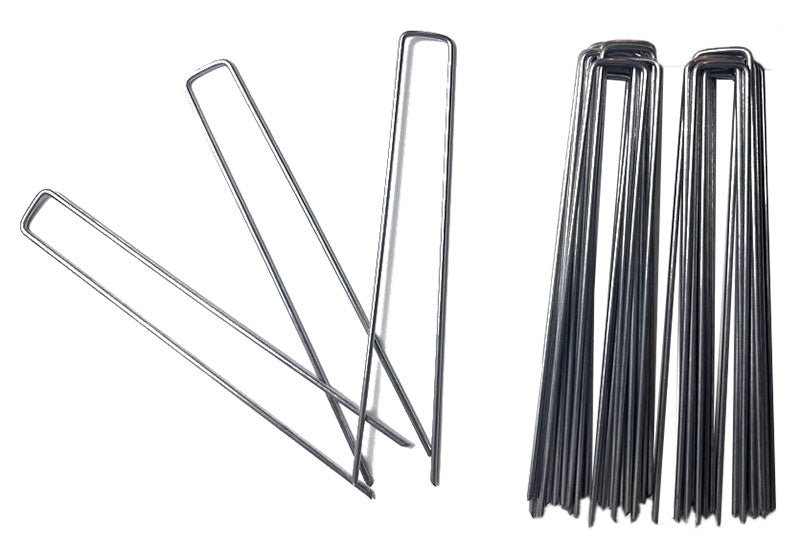

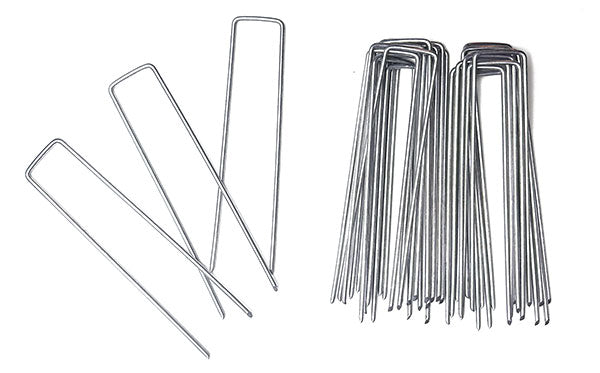

  • Unroll and place the woven fabric on the desired area and pull taut. Provide an overlap ranging from 18" - 24" depending on the strength of the subgrade. Secure the fabric with fabric staples, staggering the staples at an approximate rate of 1 staple per 5 feet.

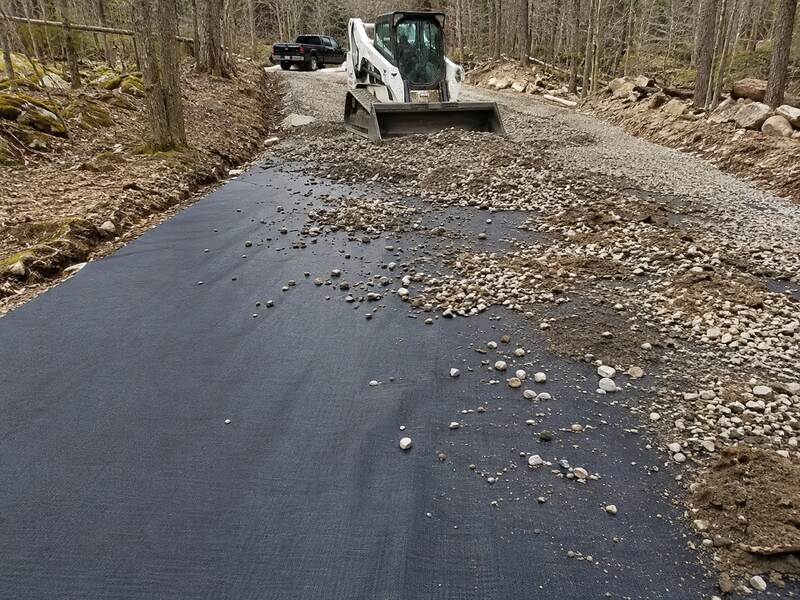

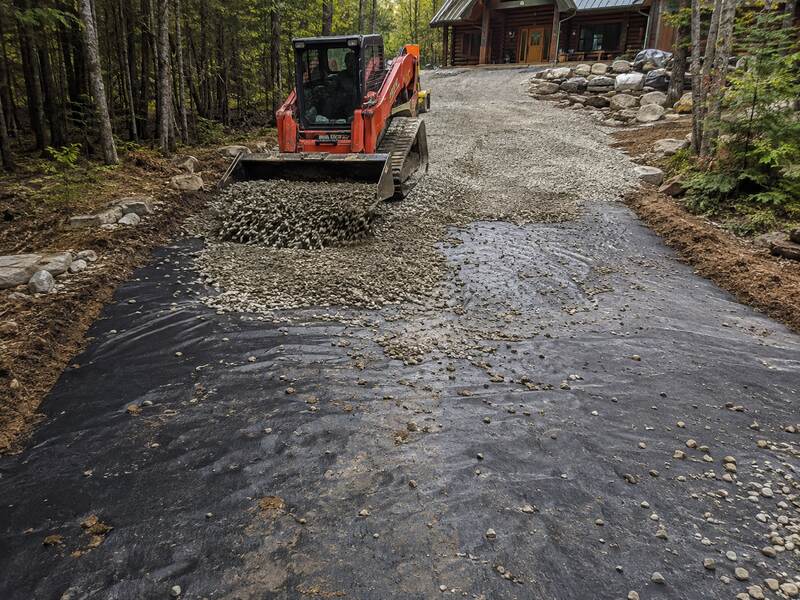

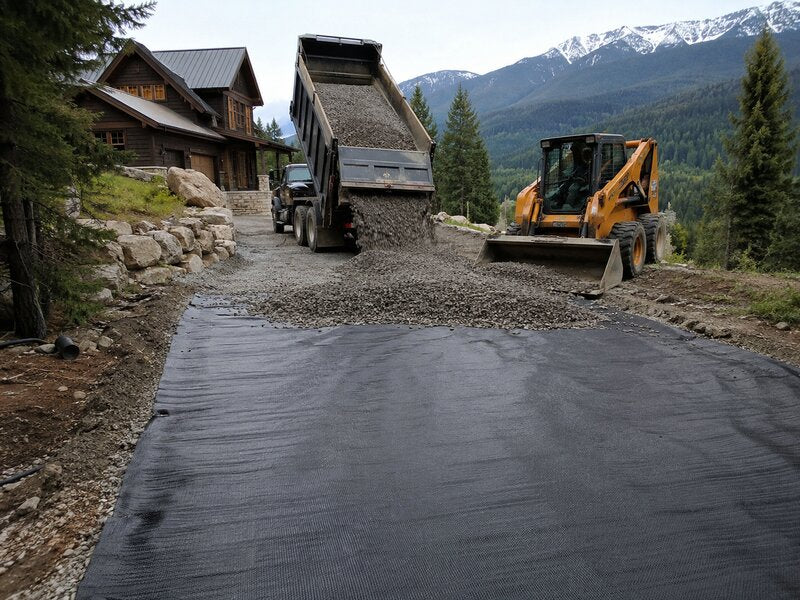

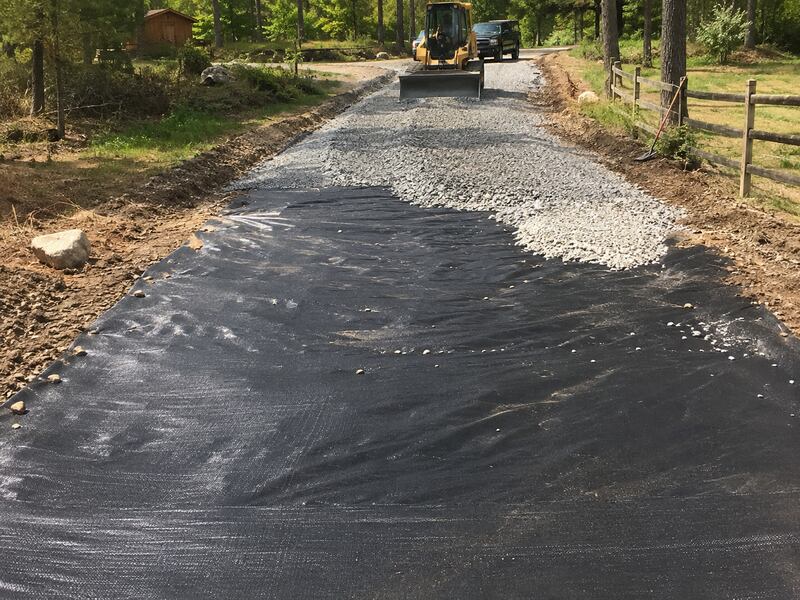

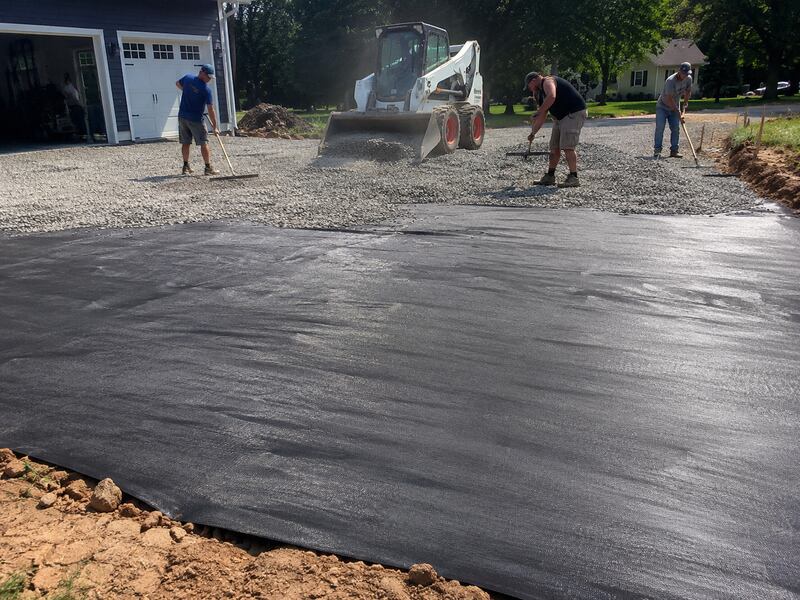

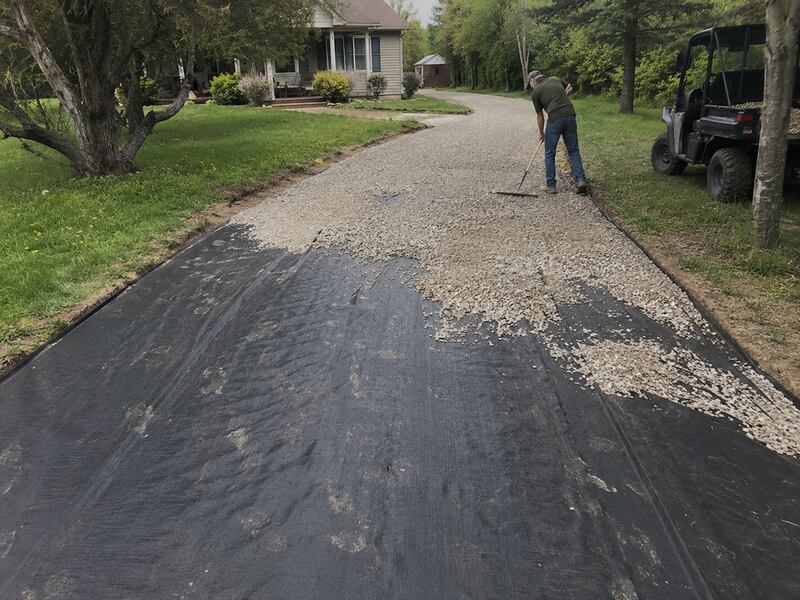

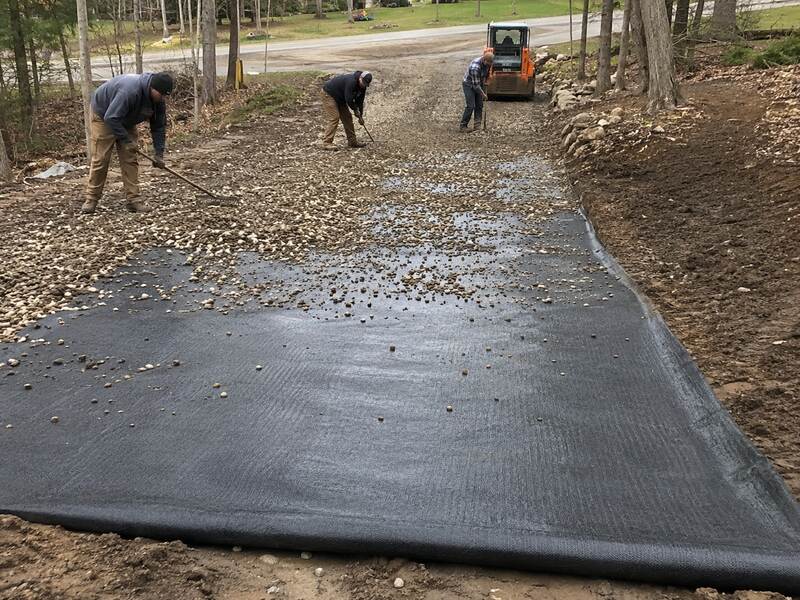

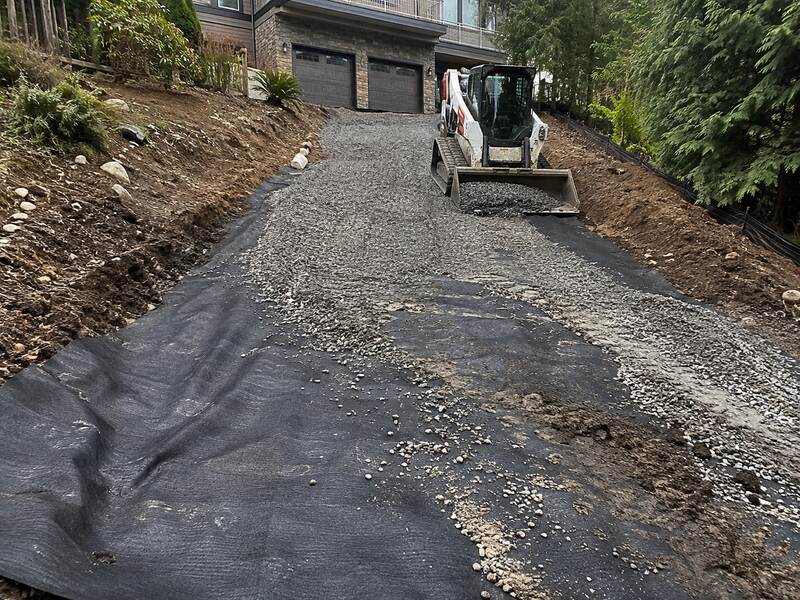

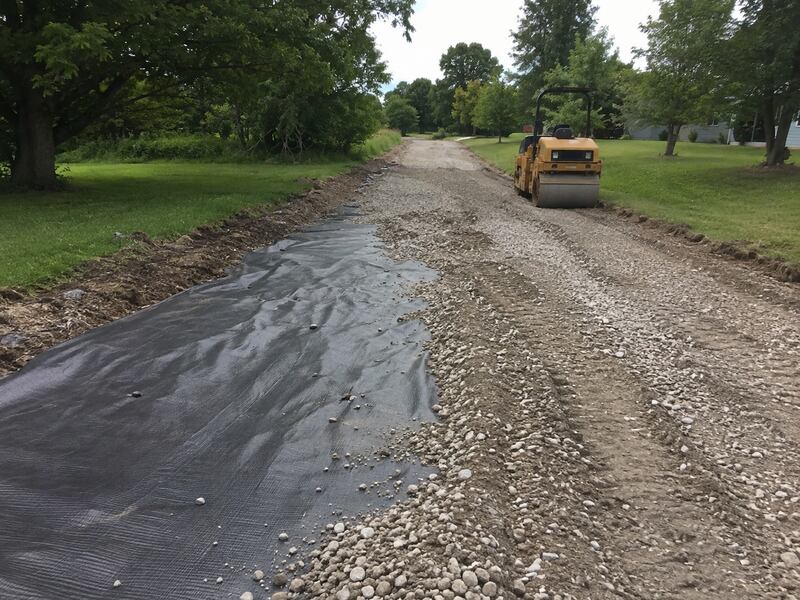

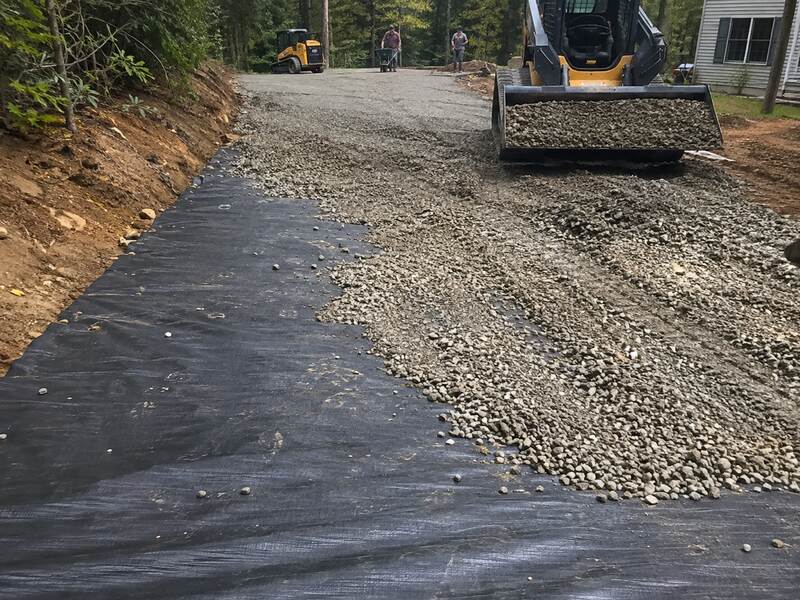

  • Place at least 4" of base material onto the woven fabric. When applying the gravel a rubber tired vehicle can be driven directly on the fabric while carefully dumping gravel, avoid turns or stops and drive at a speed of less than 8 mph. Once the gravel has been applied to the fabric the roadway can be driven on normally.
Download Specification Sheet
Road Fabric Installation Guide

FABRIC SHIPPING TIME - GEORGIA WAREHOUSE:

  • All Fabric Ships for Free (standard ground, see map)
  • Expedited shipping only available on orders over $2,000
         Call:  for pricing and ship times

By default, Heavy Duty Road orders ship from the Georgia warehouse. Most orders ship next day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Heavy Duty Road/Stabilization fabric lines. The day that the order is shipped is not counted as a transit day. Most fabric rolls greater than 6' wide ship via LTL freight.

For expedited shipping rates please call: (800) 520-7731

The transit times displayed on the map are for our free shipping option.

FABRIC SHIPPING TIME - SOUTHERN CALIFORNIA WAREHOUSE:

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Southern California warehouse (Mira Loma) you must first contact us first to confirm stock.

Orders can also be picked up at this warehouse location if preferred. Southern California warehouse orders must be placed over the phone.

Most Heavy Duty fabric California warehouse orders ship next day (M-F) if the order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Heavy Duty road fabric line. The day that the order is shipped is not counted as a transit day. Most 6' wide fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 520-7731

The transit times displayed on the map are for our free shipping option.

Other sizes available:

FABRIC SPECIFICATIONS

To the best of our knowledge, the information contained herein is accurate. However, Pro Fabric Supply cannot anticipate all conditions under which the above product information and the products which we distribute or the products of other distributors or manufacturers in combination with the products which we offer, may be used. We accept no responsibility for results obtained by the application of this information or the safety or suitability of the products we distribute either alone or in combination with other products. Final determination of the suitability of any information or material for the used contemplated, or its manner of use, and whether the suggested use infringes any patents is the sole responsibility of the user. Please note: Pro Fabric Supply is a distributor of geotextile fabric, not the manufacturer. We source material from a number of different United States based geotextile manufacturers.
