Paver Base Fabric Material - 12' x 300' Roll

$1,192.08

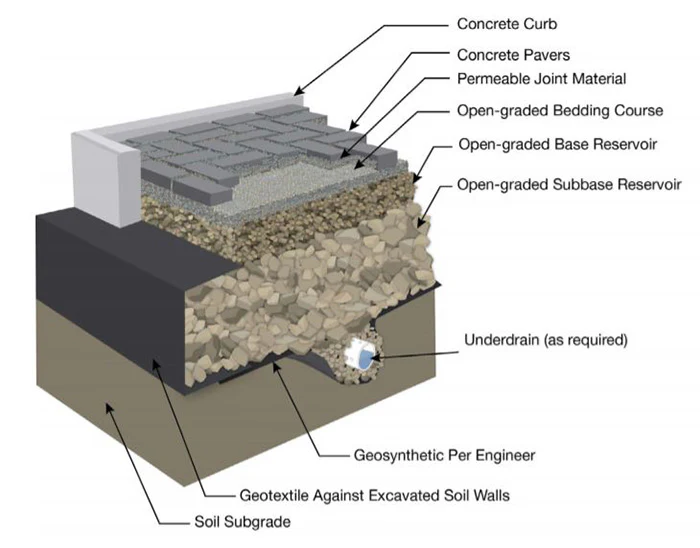

An excellent choice for permeable pavement projects, the monofilament woven paver base fabric material is specifically designed to reinforce paver patios and driveways. The woven geotextile material is permeable allowing for excellent water flow while promoting a high structural integrity of the rock base courses underneath the paver system. With high tensile strength, this fabric can be used on both residential and commercial paver installations.

Product Specifics

  • Model: FAB-PBM12300
  •  Series: Woven Paver Base Fabric Material
  • Size: 12' x 300'
  • Square Feet / Roll: 3,600
  • Free Shipping
  • Need a Written Quote?
    Request Online >
  • Volume Pricing Available on Large Rolls
         (widths 9 feet and above)
  • Questions? Call (800) 520-7731

woven Paver Base Fabric Material

  • High Strength / Excellent Permittivity
  • Monofilament Woven Material
  • Contractor Grade
  • UV Resistant
  • Non-Biodegradable
  • Will Not Rot or Mildew
  • Resistant to Rodent and Insect Damage

All of our geotextile fabrics are professional-grade and are designed for use in both residential & commercial applications. Our fabrics are designed for years of continuous use in the designated application.

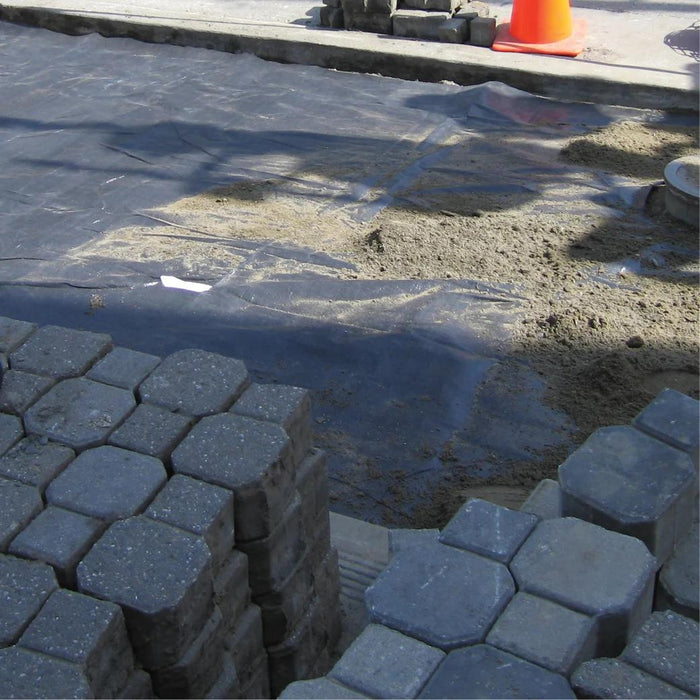

FABRIC installation

  • Level and smooth out the subgrade. Remove sharp rocks and other objects that could puncture the fabric during the installation.
  • Unroll and place the woven fabric on the desired area and pull taut. Provide an overlap ranging from 18" - 24" depending on the strength of the subgrade. Secure the fabric with fabric staples, staggering the staples at an approximate rate of 1 staple per 5 feet.
  • Carefully back fill with graded crushed stone onto fabric. Properly installed woven paver base fabric can improve the long-term performance of your project 50-70%.

Shipping

  • All Fabric Ships for Free (standard ground, see map)
  • Expedited shipping only available on orders over $2,000
         Call: (800) 520-7731 for pricing and ship times

Shipping estimates shown on the map pertain to this specific product only. Fabric orders typically ship same day if the order is placed before 12:00 noon CST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

Other sizes available:

FABRIC SPECIFICATIONS

Fabric PropertyTest MethodUnitsMinimum Average
Roll Value
Grab Tensile ASTM D 4632lbs. / ft350 x 200
Grab ElongationASTM D 4632%15x15
Trap Tear StrengthASTM D 4533lbs. / ft100 x 70
CBR Puncture Strength
ASTM D 6241lbs. / ft800
Percent Open Area
CEO-02215%6
PermittivityASTM D 4491 sec-¹.5
PermeabilityASTM D 4491 cm / sec.14
Water FlowASTM D 4491gpm/ft²60
UV ResistanceASTM D 4355% Strength Retained
After 500 Hours
90
AOSASTM D 4751US Sieve40

To the best of our knowledge, the information contained herein is accurate. However, Pro Fabric Supply cannot anticipate all conditions under which the above product information and the products which we distribute or the products of other distributors or manufacturers in combination with the products which we offer, may be used. We accept no responsibility for results obtained by the application of this information or the safety or suitability of the products we distribute either alone or in combination with other products. Final determination of the suitability of any information or material for the used contemplated, or its manner of use, and whether the suggested use infringes any patents is the sole responsibility of the user. Please note: Pro Fabric Supply is a distributor of geotextile fabric, not the manufacturer. We source material from a number of different United States based geotextile manufacturers.
