Flexible Trough Drain Liner



Our Flexible Trough Drain Liner is constructed from high-density polyethylene (HDPE), a robust waterproof material designed to meet the demanding conditions of any job site. This liner excels in durability, being both puncture and tear-resistant, yet it remains flexible enough for easy handling and installation.

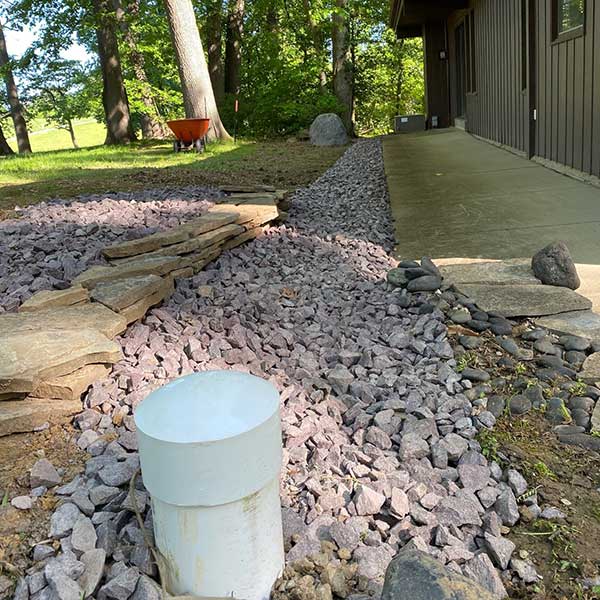

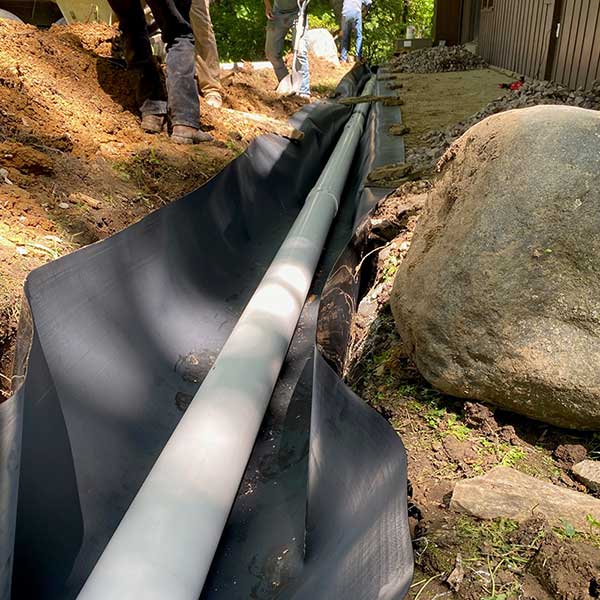

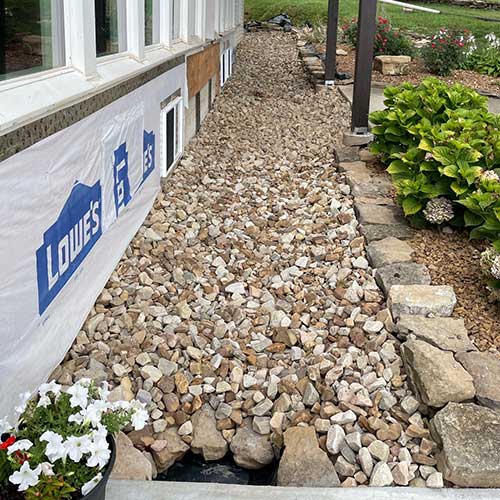

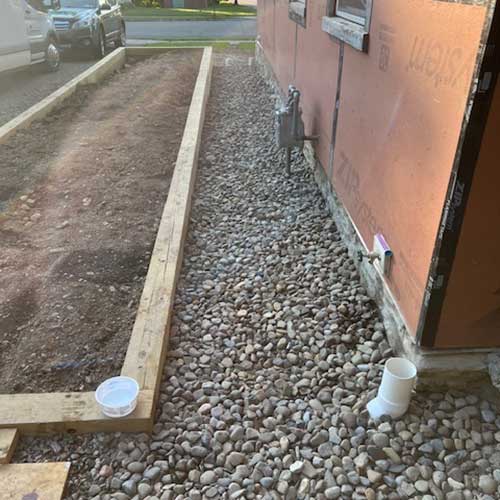

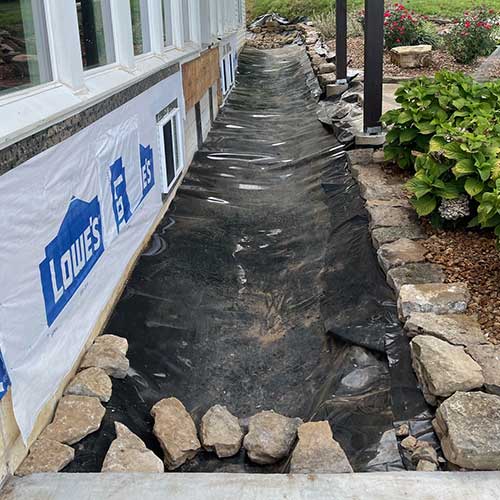

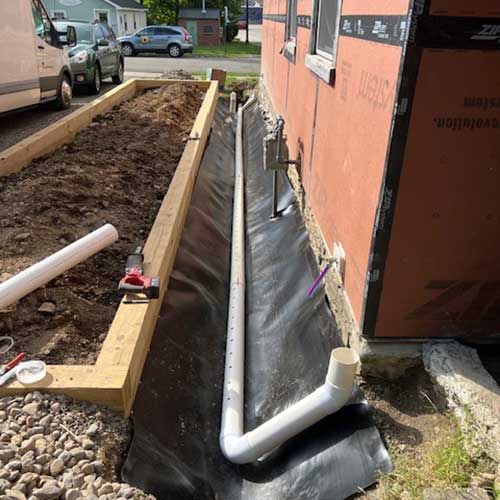

The liner is primarily used within trenches that have been excavated for drainage purposes. To install, simply lay the liner in the trench and cover it with rocks to ensure it stays in place. For larger projects, where multiple liner sections are needed, they can be overlaid and joined using our HDPE double-sided seam tape (sold separately).

Material: High-density polyethylene (HDPE), valued for its toughness and flexibility.
Width Options: Available in widths ranging from 18 inches to 60 inches.
Thickness Options: Available in thicknesses ranging from 40 mil to 80 mil.

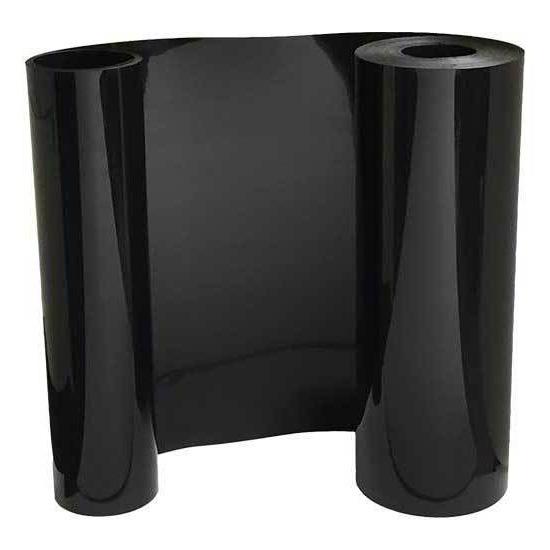

Roll Length: Comes in rolls of 100 feet each.
Origin: Manufactured in the USA.

Ideal for construction, landscaping, or agricultural applications, this product provides a reliable solution for managing water flow and controlling erosion effectively.

Material Thickness:
40 mil = 3/64”
60 mil = 1/16”
80 mil = 5/64”

Please Note: The widest rolls that we offer in HDPE are 60” (5ft).

We are also unable to provide custom roll lengths.

Product Specifics

  • Material: High Density Polyethylene
  • Texture: Smooth
  • Size: Various
  • Free Shipping
  • Need a Written Quote?
    Request Online >
  • Volume Pricing Available - orders $6,500+
  • Questions? Call (800) 520-7731

HDPE Plastic

  • Waterproof
  • Commercial Grade
  • UV Resistant
  • Non-Biodegradable
  • Will Not Rot or Mildew
  • Resistant to Rodent and Insect Damage
  • 100 Year Material Lifespan
  • Made in the USA

All of our plastics are professional-grade and are designed for use in both residential & commercial applications. Our plastics are designed for years of continuous use in the designated application.

HDPE Barrier Tape

HDPE Barrier Tape - Moisture Resistant
HDPE Barrier Tape - Moisture Resistant
HDPE Barrier Tape - Moisture Resistant
HDPE Barrier Tape - Moisture Resistant

HDPE Barrier Tape - Moisture Resistant



  • All HDPE Ships for Free (standard ground, see map)
  • Expedited shipping only available on orders over $2,000
         Call: (800) 520-7731 for pricing and ship times

Shipping estimates shown on the map pertain to this specific product only. HDPE orders typically ship same day if the order is placed before 12:00 noon CST. Transit times displayed in the map are listed in business days, and are approximate. Transit times are subject to stock levels at regional warehouses.  The day that the order is shipped is not counted as a transit day.

Thickness comparison

The below is a thickness comparison of the material. HDPE plastic thickness is measured in "mils" which is "thousands of an inch".
