SKU: FAB-SB212300

standard grade 2oz filter and drainage fabric

Drainage & Filtration Fabric - Standard Grade - 2oz - 12' x 300' Roll

Name: Drainage & Filtration Fabric - Standard Grade - 2oz - 12' x 300' Roll
Brand: Pro Fabric - S
SKU: FAB-SB212300
Price: 850.00 USD
Availability: InStock

$850.00

FREE SHIPPING

Quantity

Roll Coverage Calculator

Total Area Needed (sq ft)

Overlap (inches)

Waste (%)

Rolls Needed

--rolls

This product: 3600 sq ft / roll

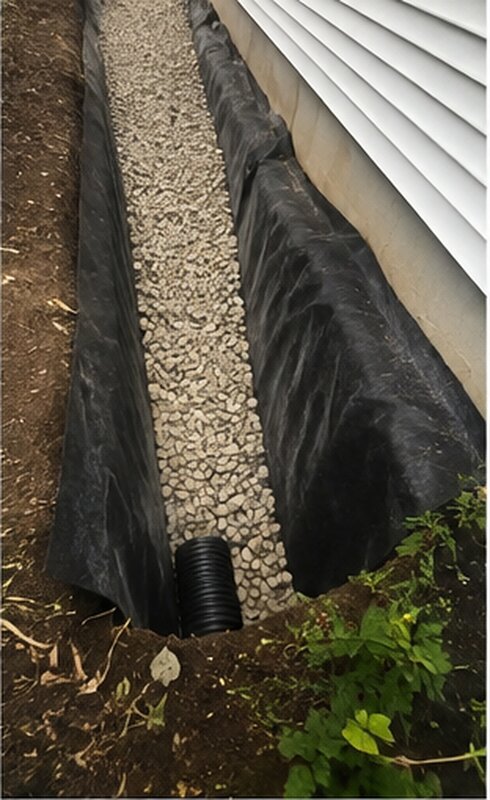

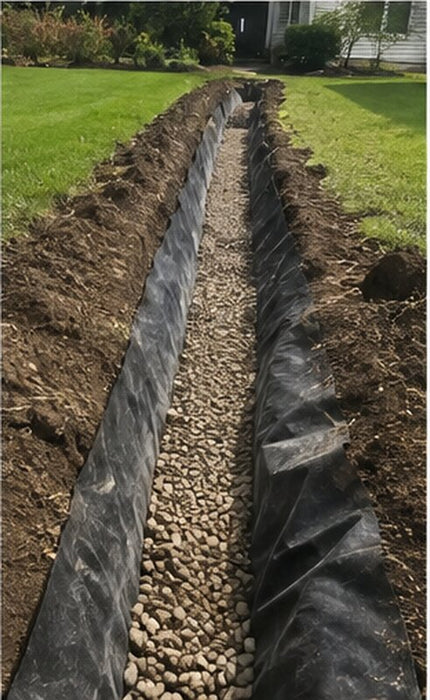

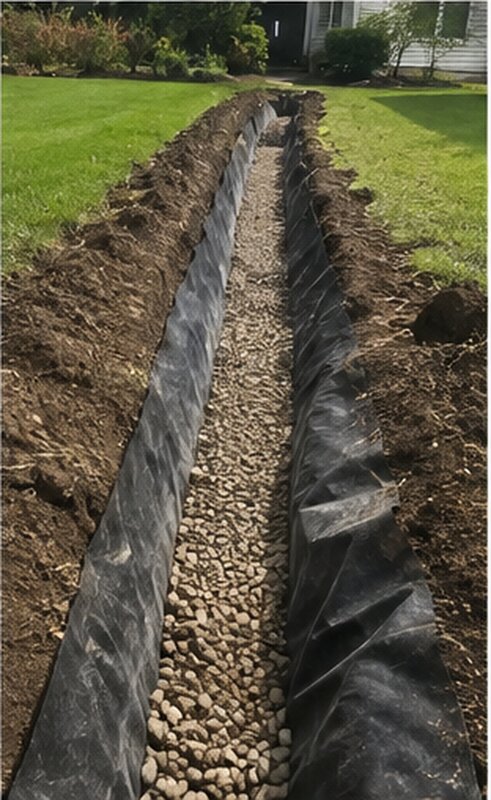

Looking for a filter fabric roll with a high water flow rate? The commercial grade polyester drainage and filtration fabric is ideal for drainage applications where a high water flow rate is required. The fabrics are puncture and tear resistant, are easy to cut and are flexible enough to conform to the land contours. These fabrics are commonly used in drain fields, french drains and behind retaining walls.

Product Specifics

Model: FAB-SB212300
Series: Drainage & Filtration - Standard
Size: 12' x 300'
Square Feet / Roll: 3,600
Estimated Material Lifespan: 10 years

Free Shipping
Need a Written Quote?
Request Online >
Volume Pricing Available on Large Rolls
(widths 9 feet and above)
Questions? Call (800) 520-7731

Drainage 2 oz Fabric

Contractor Grade
UV Resistant
Non-Biodegradable
Will Not Rot or Mildew
Resistant to Rodent and Insect Damage

All of our geotextile fabrics are professional-grade and are designed for use in both residential & commercial applications. Our fabrics are designed for years of continuous use in the designated application.

Fabric Installation

Prepare area by removing all weeds and plants from the desired area.
Unroll and cut the fabric to the appropriate length. If overlapping the fabric, allow for a 4" - 6" overlap. Secure the fabric with fabric staples, staggering the staples at an approximate rate of 1 staple per 5 feet.
Cover the fabric with 3-4 inches of bark, mulch or stone to protect the fabric from ultraviolet light and to give the project a finished look.

Shipping

All Fabric Ships for Free (standard ground, see map)
Expedited shipping only available on orders over $2,000
Call: (800) 520-7731 for pricing and ship times

Shipping estimates shown on the map pertain to this specific product only. Fabric orders typically ship same day if the order is placed before 12:00 noon CST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

Other Sizes Available:

FABRIC SPECIFICATIONS

To the best of our knowledge, the information contained herein is accurate. However, Pro Fabric Supply cannot anticipate all conditions under which the above product information and the products which we distribute or the products of other distributors or manufacturers in combination with the products which we offer, may be used. We accept no responsibility for results obtained by the application of this information or the safety or suitability of the products we distribute either alone or in combination with other products. Final determination of the suitability of any information or material for the used contemplated, or its manner of use, and whether the suggested use infringes any patents is the sole responsibility of the user. Please note: Pro Fabric Supply is a distributor of geotextile fabric, not the manufacturer. We source material from a number of different United States based geotextile manufacturers.

Download Specification Sheet

Fabric comparison

The below is a comparison of the general effectiveness as a drainage and filtration fabric between different fabrics that we offer based on fabric material composition. Please note that the below levels are an approximation.

Water Flow Rate

Drainage & Filtration - Standard Grade - 2oz

100%

Drainage & Filtration - Standard Grade - 3oz

45%

Drainage & Filtration - Heavy-Duty - 4oz

56%

Drainage & Filtration - Heavy-Duty - 6oz

44%

Drainage & Filtration - Ultra Heavy-Duty - 8oz

36%

FABRIC STRENGTH

Drainage & Filtration - Standard Grade - 2oz

17%

Drainage & Filtration - Standard Grade - 3oz

28%

Drainage & Filtration - Heavy-Duty - 4oz

49%

Drainage & Filtration - Heavy-Duty - 6oz

69%

Drainage & Filtration - Ultra Heavy-Duty - 8oz

100%

The Difference Between Landscape Fabric & Drainfield / Filtration Fabric

The difference between these two fabrics is based on how they are made. Geo-Fabric is perfect for laying in gardens and landscapes. This fabric will help to retain soil and prevent weeds. Once in place, the fabric is then covered with various ground covers including cedar chips or decorative stone.

Drain field fabric is made to protect sand filters from soil that will clog the drains. This fabric is lightweight, one square yard will weigh under one once.

Both of these fabrics come in a variety of widths to work with different projects but, in general, they are usually sold in rolls 3’, 4’, 6’, 8’ and 12’ widths. Both landscape fabric and drain field fabric are known as geotextiles.

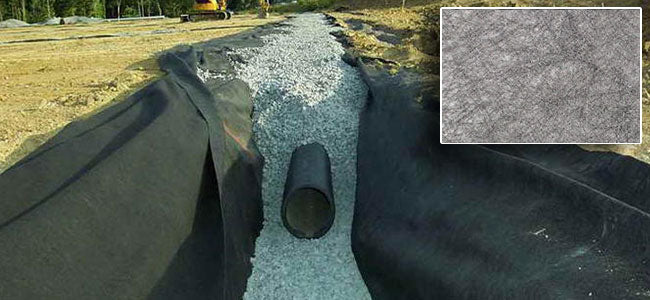

Drainage Fabric Rolled Out at Job Site

Geotextiles

Both drain field and landscape fabrics are used for many different applications. Their number one purpose is to increase the stability of the surrounding soil. They are ideal for controlling erosion and improving drainage. Thanks to modern technology, they are non-biodegradable fabrics for long-lasting results for small backyard gardens or for large construction projects.

Geofabrics come in either woven or nonwoven fabric. Nonwoven fabric is used in drain fields for erosion control, and as overlays for pavement. Woven fabric offers a great deal of strength and is extremely durable but is not used for filtration.

Drain Field Fabric

First and foremost, drain fields must be able to breathe in order to work properly. Laying drain field fabric between the soil and stone, it keeps out soil particles and sediment. Sediment can seriously hinder the drain field's filtering abilities. That's why this fabric is lightweight in comparison to landscaping fabric. That said, landscaping fabric has been used in laying a drain field but it's not recommended. When used in drain fields, this fabric's weight should not go over 3 ounces per square yard.

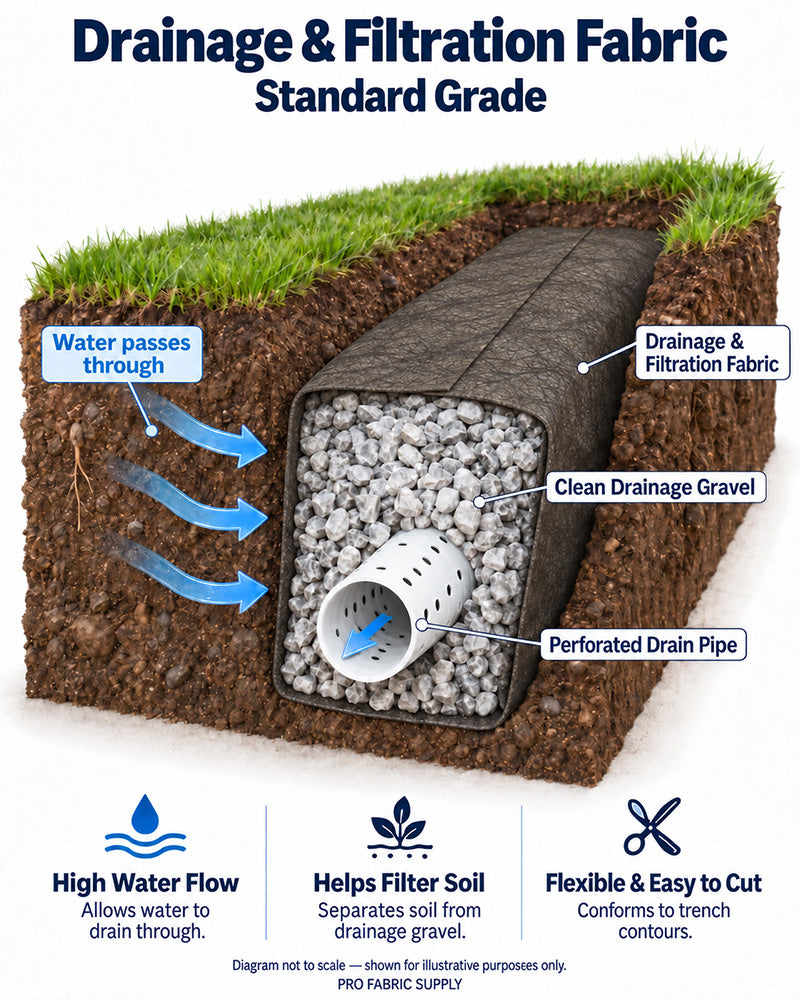

Normally, drain fields have a trench of rock with a perforated pipe on top. The pipe is covered with the drain field fabric than a layer of crushed stone, then another layer of fabric, and a final layer of soil that is not less than 6 inches deep.

Drain Field Fabric Benefits

In a drain field, filtration takes place because of the interaction between the soil and water flow. Because of the nature of this fabric's lightweight, the interplay between soil and water works perfectly without sediment buildup.

Drain field fabric offers permeability thanks to the very tiny holes in the fabric giving the effect of a reverse filter for surrounding soil. Also, this fabric blocks root growth that would damage the drain field the same way as landscape fabric blocks weeds.

Drain Field Fabric Being Installed

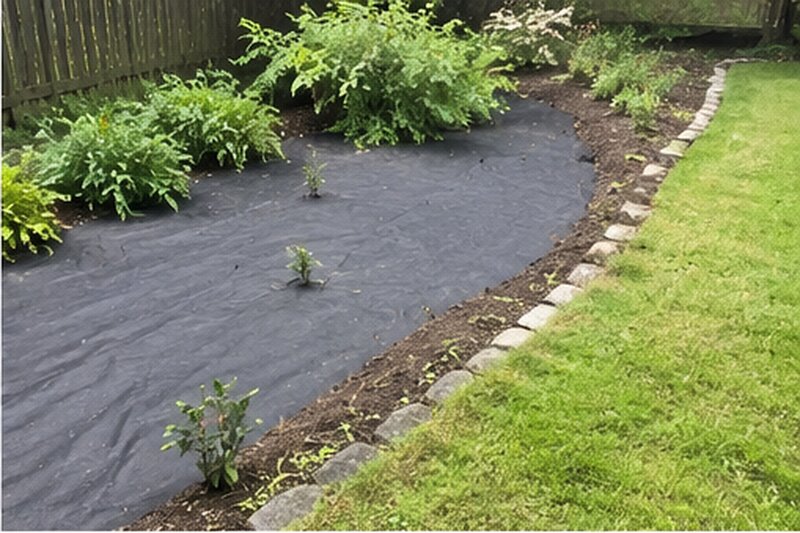

Landscape Fabric

Landscape fabric is placed on the surface of the soil to block weed growth and is heavier than drain field fabric. This fabric improves erosion control and gives an even look to areas designed for decorative reasons. Like all geofabrics, some are woven while others are nonwoven. For longer life, woven landscape fabric has excellent durability when used in gardens.

Similar to drain field fabric, landscape fabric allows water and air to move through the soil. Also, the soil temperature will not change as much thereby protecting plants with delicate root systems. Landscape fabric works really well under decks, sidewalks, or gardens with decorative ground cover such as landscaping rock or mulch.
